Opus Flush Fit Ceiling Hood 90×50 Black – Recirculated – VP-CH95BLK

Slimline Ceiling  Recirculated Hood

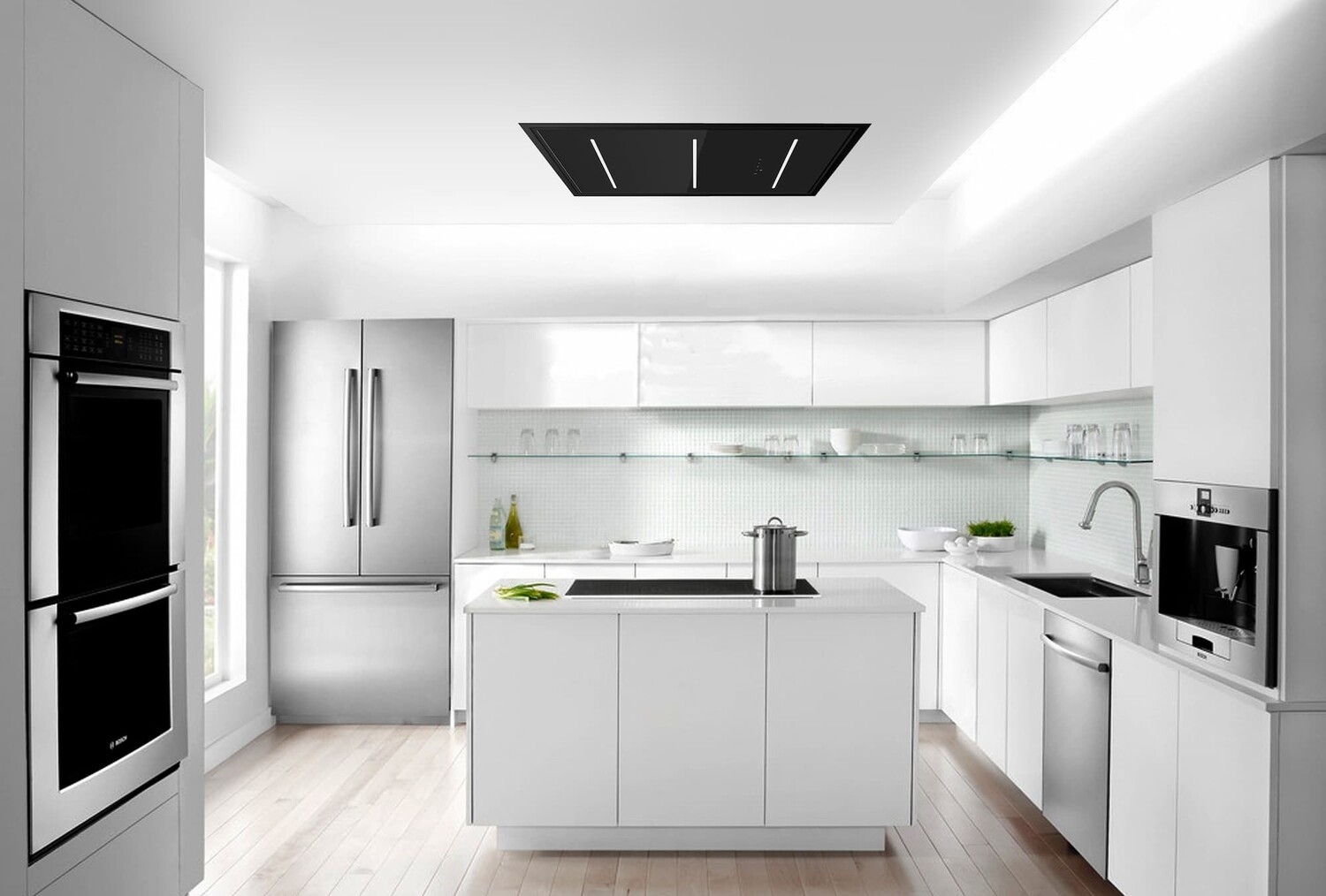

Stunning new remote control ceiling extractor with slimline profile. to give a beautiful flush fit finish.

Featuring a central black glass hinged panel (the stainless steel washable grease filters are housed behind it) with 3 LED light strips and a black outer frame. Bluetooth remote control means it’s simple to operate without reaching up, but the hood also comes with easy touch controls for manual operation.

With a powerful 120W motor (giving a max extraction rate of 751m³/hr on boost) motor, this will efficiently and effectively clear your kitchen of cooking smells, grease and odours. Now with a recirculation option, you don’t need to duct to an outside wall. Using a charcoal filter and a short ducting kit to vent back into the kitchen, this offers a solution for a ceiling hood that works effectively without venting outside.

Using 220 x 90cm rectangular (equivalent to 6″) ducting to maintain ease of fitting in the ceiling void (the 90mm height fits easily), you can simply duct straight to the wall and use a rectangular outlet, or convert to 150mm round for sourcing draughtproof or insulated ducting systems. The recirculation version comes with a ducting kit and everything you need to get started.

Installing as a Recirculation Ceiling Hood

If installing in recirculation mode, you need to add the charcoal filter and duct back into the kitchen.

During installation, you use the flexible 220 x 90 ducting tube and round adaptor to connect the exhaust of the hood to the discrete white ceiling vent. The easy-to-replace charcoal filter is installed behind the grease filters on the hood.

*The support beams on the diagram are a suggested installation method. You can use the clips to hang the hood on a baton across the joists.

Please refer to a tradesperson to double-check suitability for your installation.
Like all full size ceiling hoods, you will probably need to box in below the ceiling hoods.
Please confirm suitability of recirculation with your installer before purchase

Minimum Niche Dimensions for installation L 860mm W 460mm H 207mm

• Overall Size L 900 x D 500mm x H 218mm
• Motor rating 120kW
• Max Hood Extraction Rate 751m3/hr (EN 61591)
• Maximum height above hob 1.6m
• Noise 47 – 65dB (71 at Boost)
• Ducted or recirculation
• Weight 17kg
